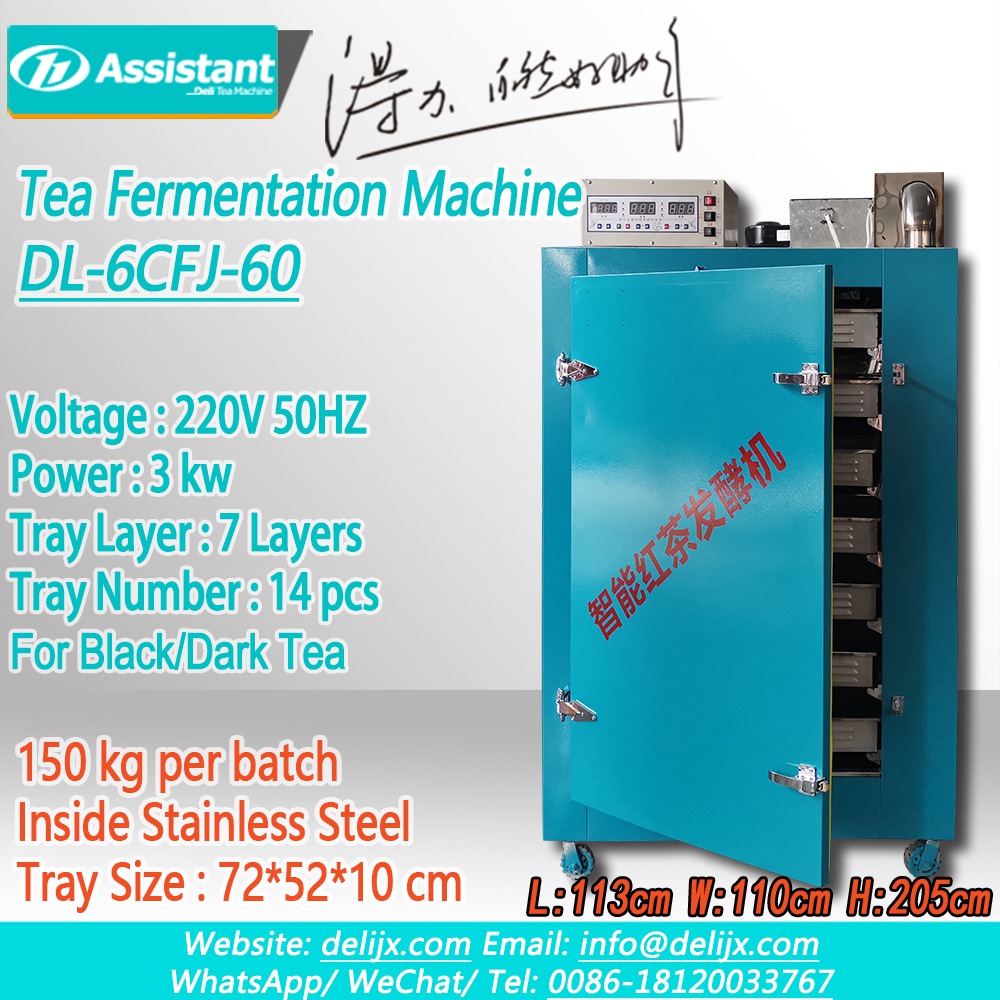

7 Layers 14 Trays Inside Stainless Steel Tea Fermentation Cabinet DL-6CFJ-60

DL-6CFJ-60 mainly used for the fermentation of black tea and dark tea, it has 7 layers 14pcs stainless steel trays, each tray can put about 12kg wet tea leaf, capacity about 150 kg per batch, through the intelligent control of temperature and humidity, let tea oxidation fermentation to the best quality.

  • Model : DL-6CFJ-60
  • Size : 1130×1100×2040 mm
  • Voltage : 220/50 V/Hz
  • Heating mode : Heating wire
  • Heating power : 6.0 KW
  • Heating group : 1 Group
  • Tray size : 720×520×100 mm
  • Tray quantity : 14 pcs
  • Tray layers : 2×7
  • Efficiency : 150 kg/time
  • Rincian Produk
   DESCRIPTION

Black tea is the fully fermented tea, the most important part of the producton process is fermentation. Fermentation is to make the grass smell in the tea disapper. The substances inside  the black tea are in full contact with the air. Under suitable conditions of temperature and humidity, the polyphenol compounds in the tea are fermented and oxidized to form theaflavins, thearubins,etc. And let the black tea emit a unique aroma.
Normally, the fermentation time of  black tea should not be too long. Because during drying, the tea will continue to ferment during the temperature increase phase.

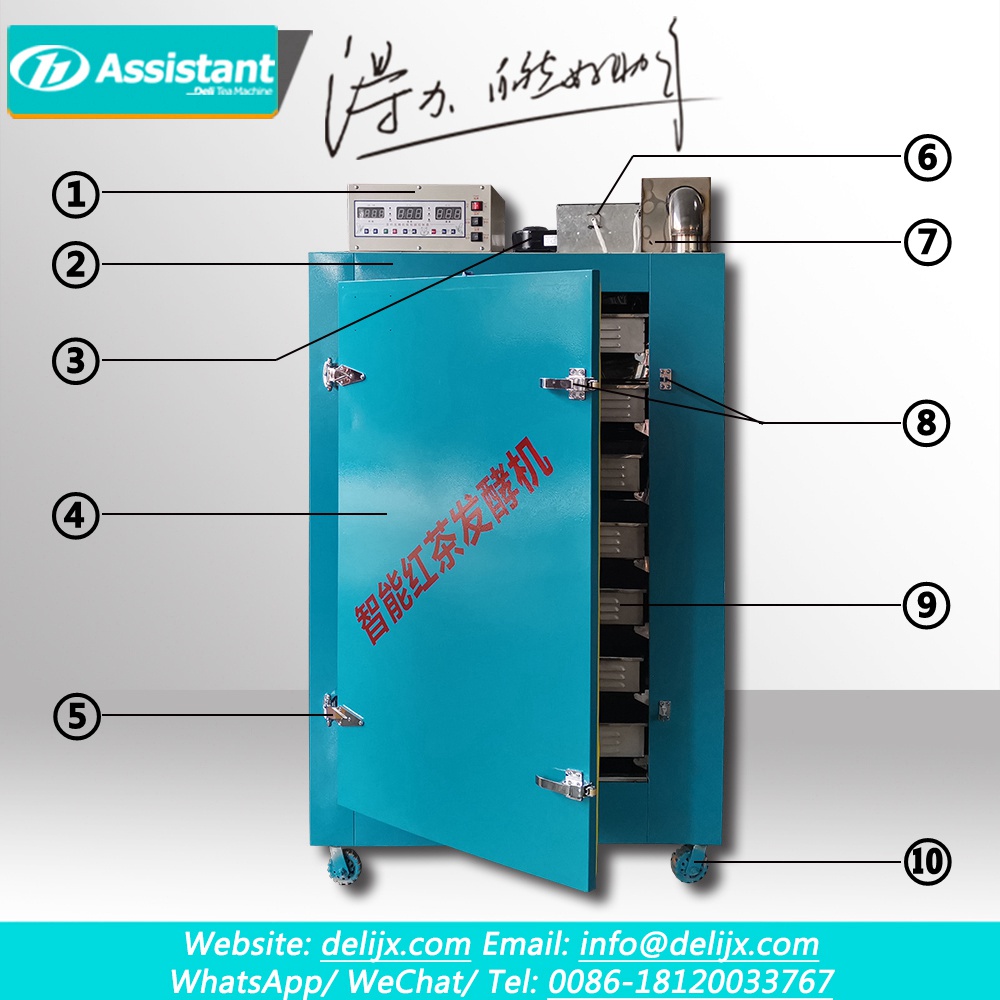

   EXPLODED VIEW

7 Layers 14 Trays Inside Stainless Steel Tea Fermentation Cabinet DL-6CFJ-60

Control Box Heating Box
Machine Body Atomization Water Tank
Blower Motor Handle & Hook
Door Ferment Tray
Hinge Wheels



   ADVANTAGE

1. Layered humidification, more even fermentation.

2. The inner tank and trays are designed with stainless steel, which is clean and hygienic.

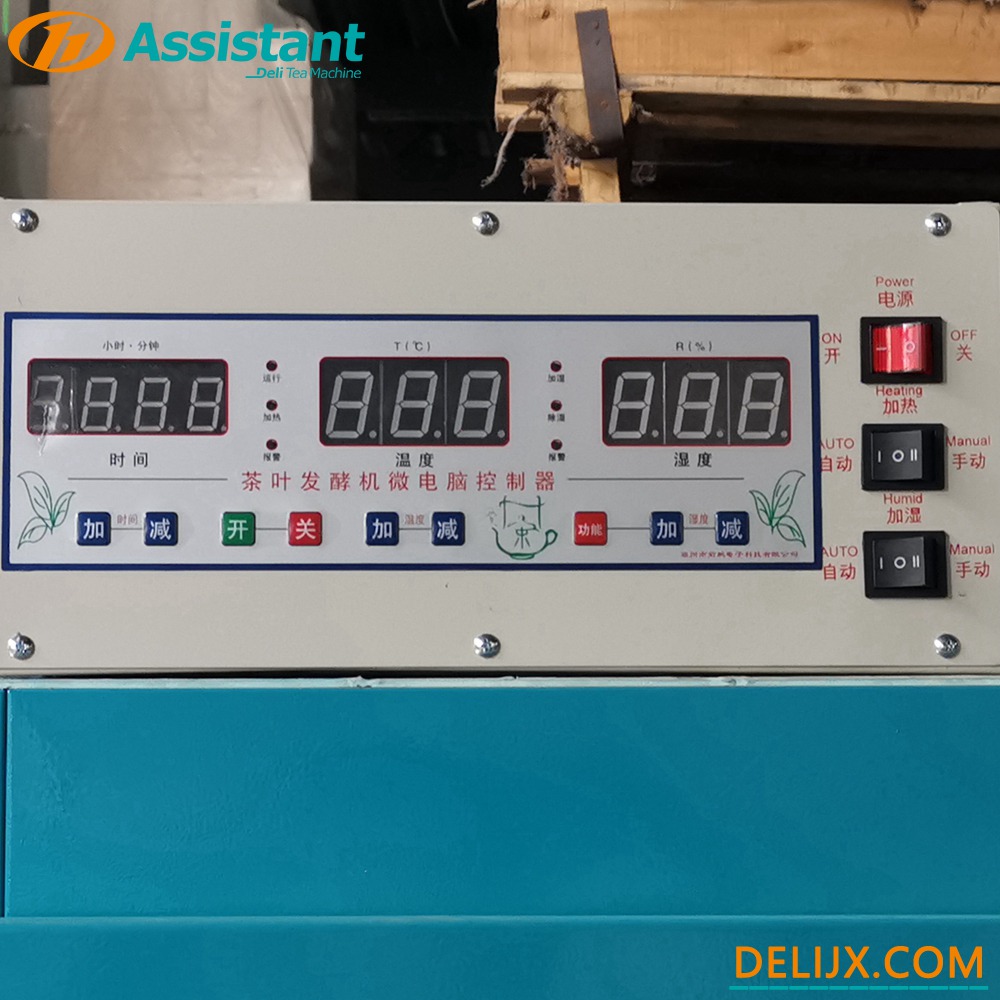

3. Integrated microcomputer control system, temperature and humidity can be intelligently controlled.

4. The high-frequency ultrasonic atomizer can atomize the water into very small droplets, which can enter the tea and improve the uniformity of fermentation.

   APPLICATION

Tea Fermentation Cabinet is suitable for processing black / green / oolong / white / dark / herbal tea, the following is the working time required for the above tea production.

 Type Of Tea  Working Time
 Black Tea  2-6 Hours
 Dark Tea  12-24 Hours
 Herbal Tea  2-6 Hours

The above data is for reference only, and the specific processing time shall be determined according to the actual situation.

   SPECIFICATION

Tea Fermentation Cabinet specification list:

Model DL-6CFJ-60
Size 1130×1100×2040 mm
Voltage 220V 50Hz
Heating mode Heating wire
Heating power 6.0 KW
Heating group 1 Group
Fan
motor
Power 85 W
Speed 2200 rpm
Voltage 220 V
Tray size 720×520×100 mm
Tray quantity 14 pcs
Tray layers 7
Efficiency 150 kg/time

Specification of all of Tea Fermentation Cabinet.

Model 6CFJ-20 6CFJ-60 6CFJ-80 6CFJ-120
Tray Quantity 5pcs 16pcs 32pcs 32pcs
Voltage 220V 220V 220V 380V
Power 3 kw 6 kw 6 kw 9 kw
Capacity 60 kg 150 kg 250 kg 350 kg

If you have special need, it can be customized according to the needs of customers.

   DETAILS

Tea Fermentation Cabinet

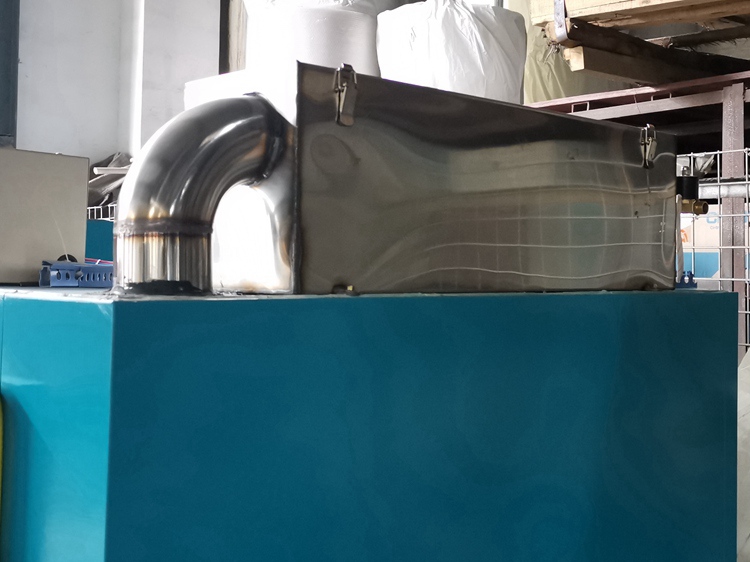

The water tank with atomizer is installed on the top, and the atomized water mist naturally fills the inside of the tea fermentation machine, and the fermentation is more uniform.



Tea Fermentation Cabinet

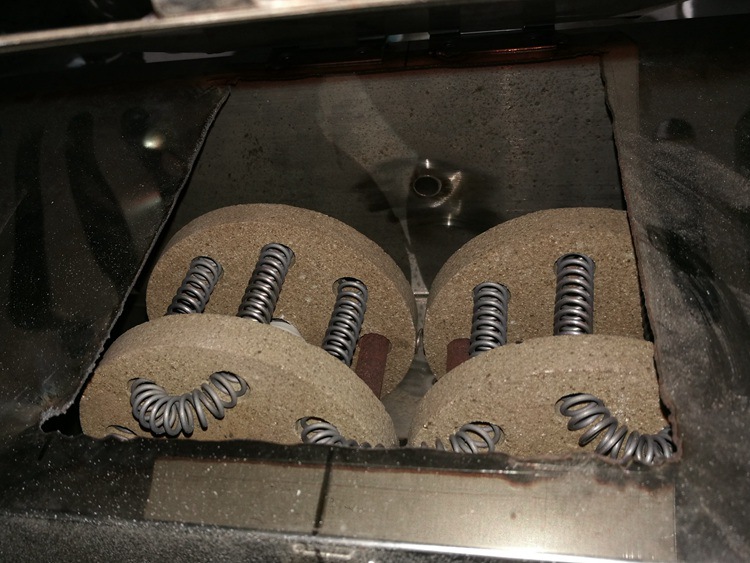

Using a durable electric heating wire with a diameter of 1mm and a high-temperature resistant polymer insulation cake, the service life of the heating wire is increased by 40% compared with other companies.



Black Tea Fermentation Process

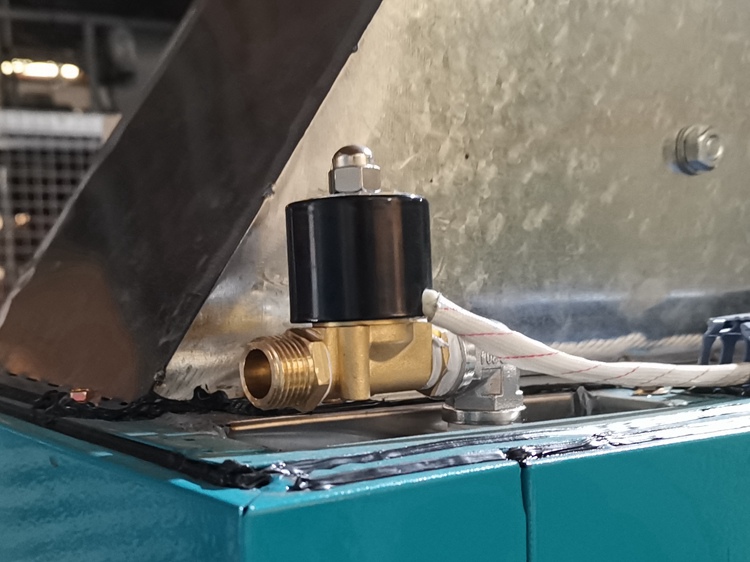

The solenoid valve design ensures that the water in the tank is kept at the best atomization height.



Black Tea Fermentation Process

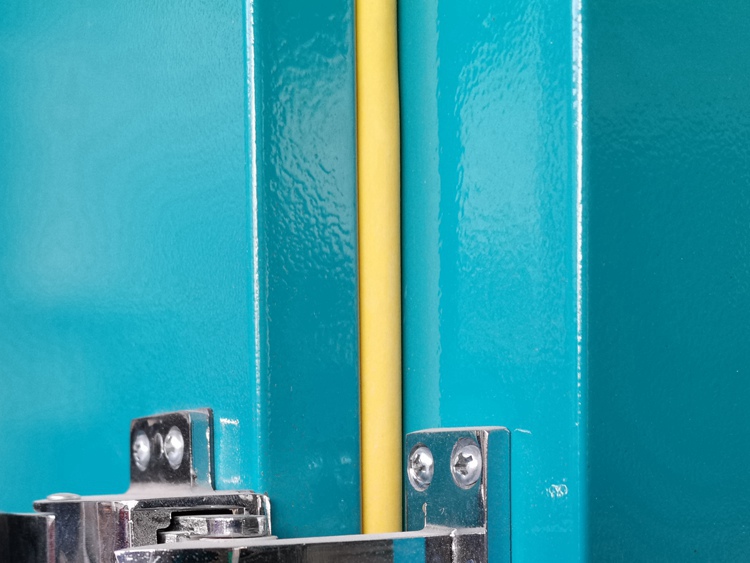

The door is lined with high-temperature resistant elastic rubber strips, which can seal the door of the machine to prevent hot air and water mist from escaping.

   PHOTOS

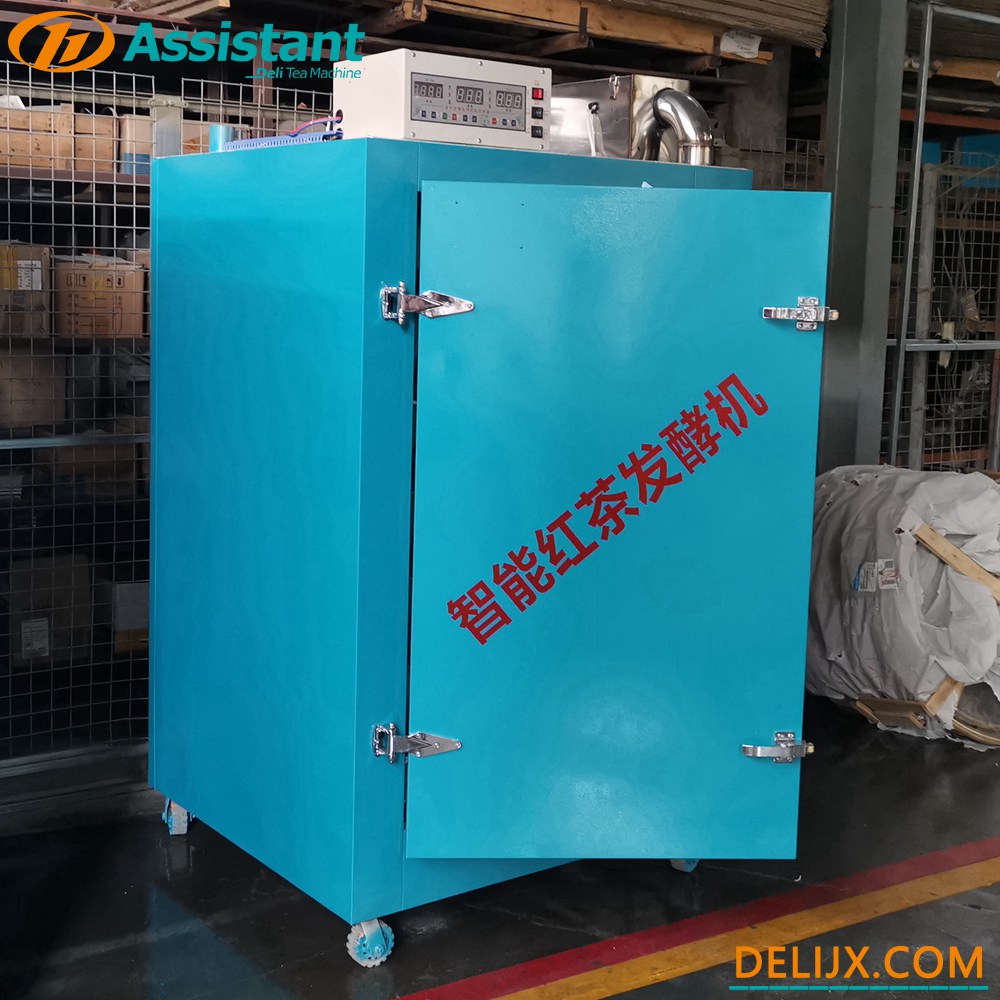

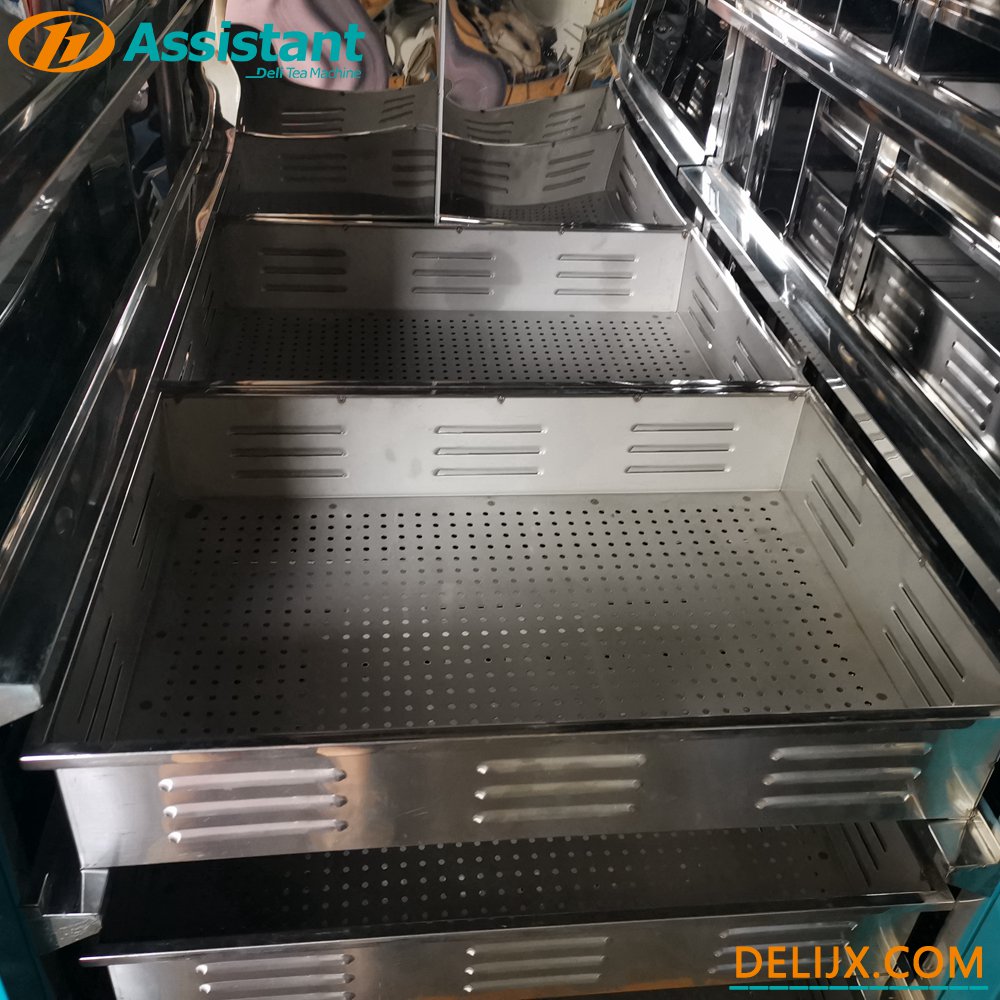

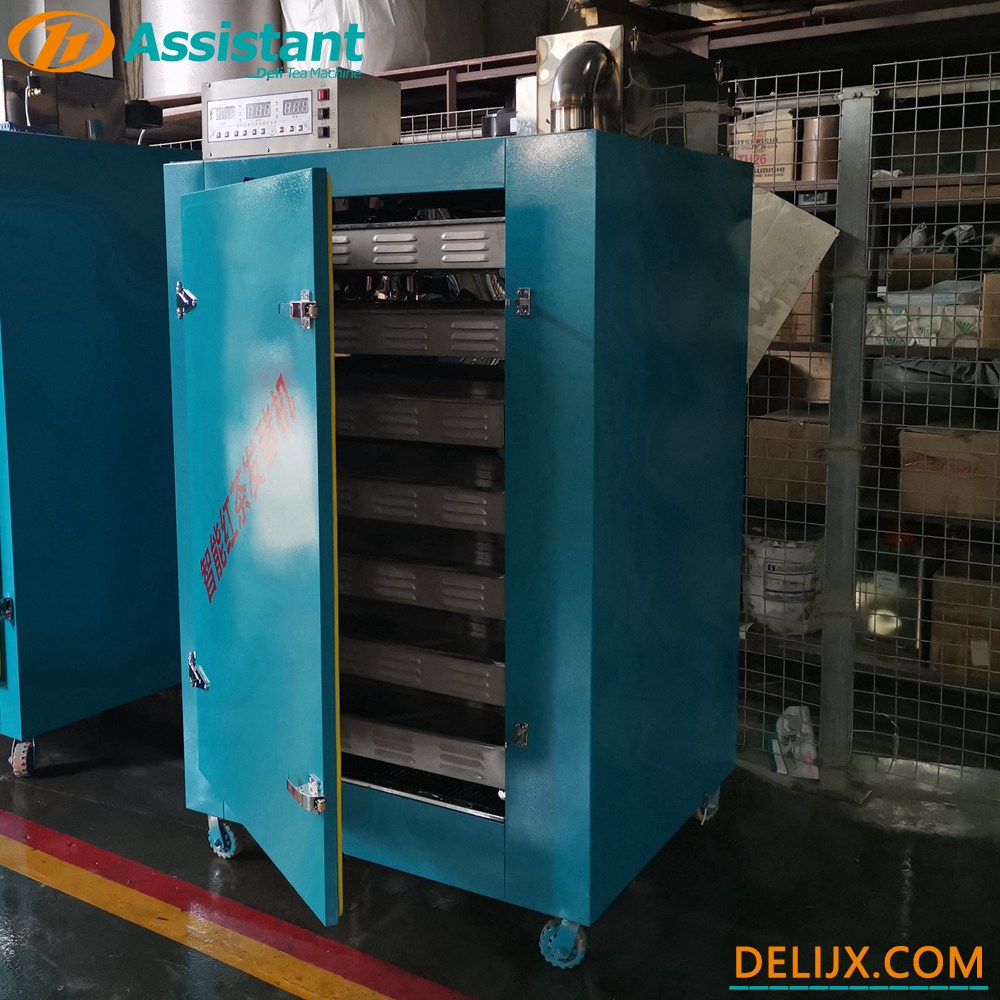

Intelligent Automatic Black Tea Fermentation Process Cabinet

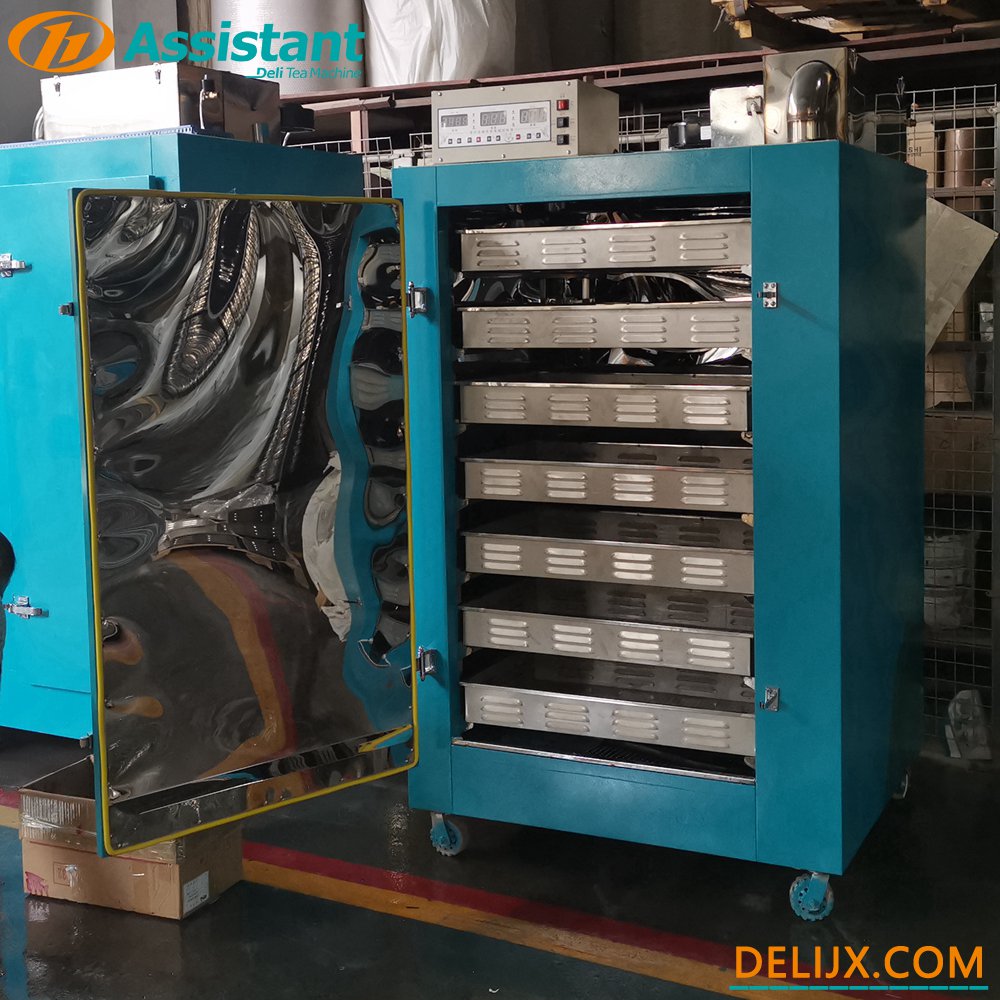

Intelligent Automatic Black Tea Fermentation Process Cabinet

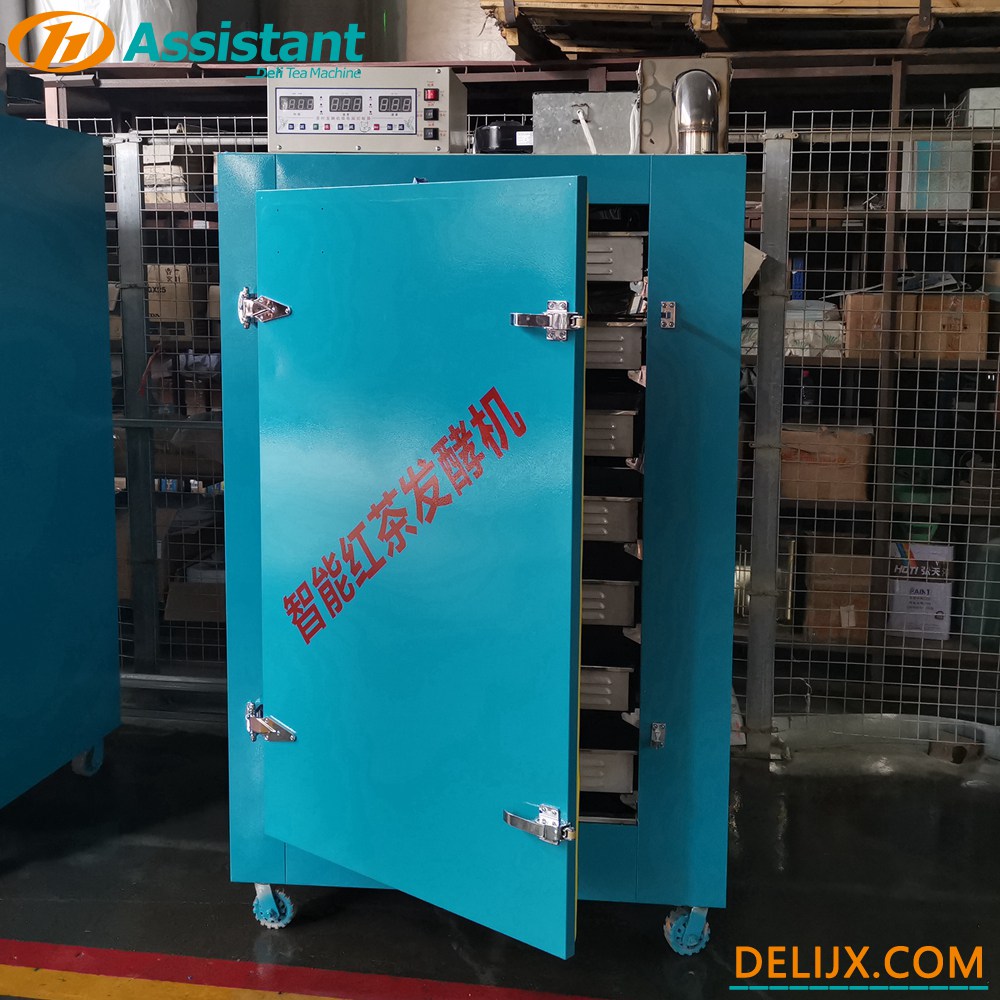

Intelligent Automatic Black Tea Fermentation Process Cabinet

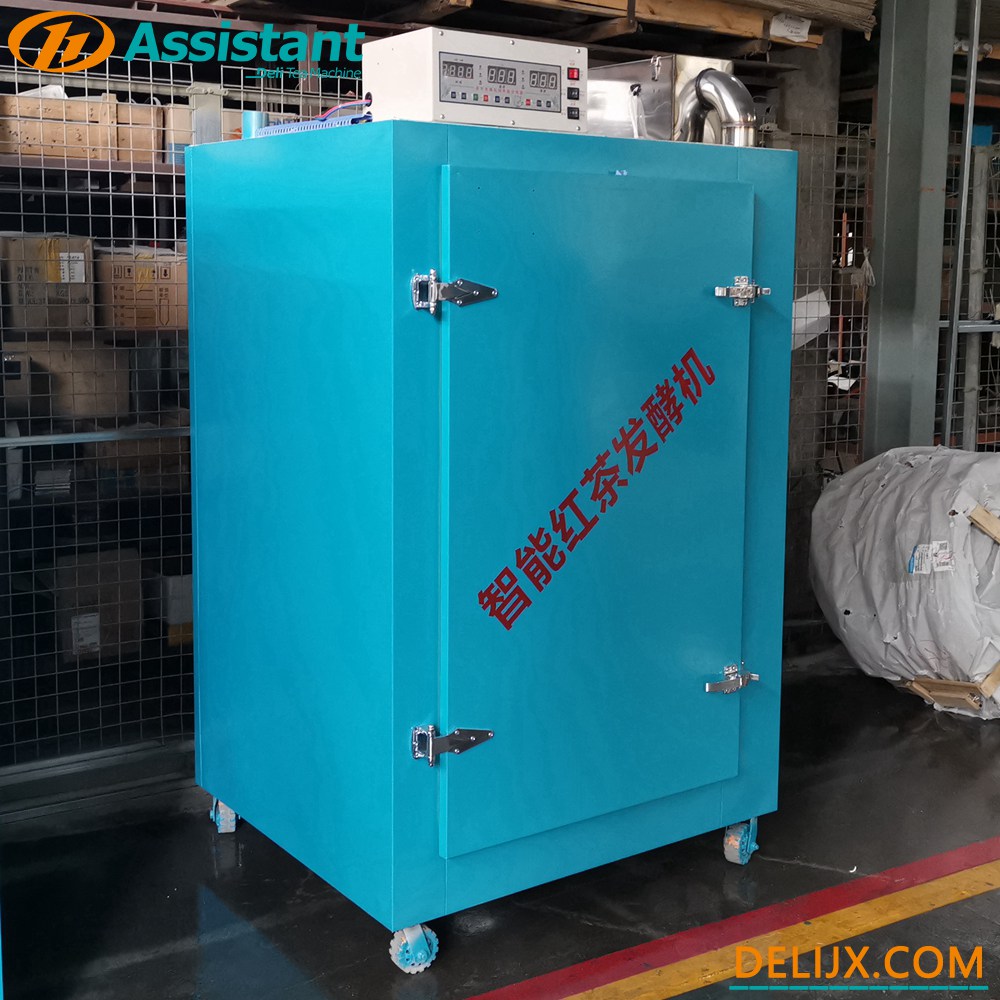

7 Layers 14 Trays Inside Stainless Steel Tea Fermentation Cabinet DL-6CFJ-60
